POWERSPRAY DIE SPRAYING TOOL

PowerSpray die spraying tools form the backbone of our product range. At your request, we will design your spray tool individually according to your specifications free of charge. All we need for our configuration is your 3D-die data. Fastest/efficient processing, competent assembly and speedy delivery guaranteed!

More and more customers appreciate the service of our experienced process technicians, who set-up the spray tool at your production site and optimise it specifically for the spraying process. Please forward all requests per e-mail to Process Technology Department.

PowerSpray spraying tools

  • are easy to assemble thanks to their modular design
  • are extremely versatile thanks to their modular design
  • are adaptable in their form with standard modules
  • are process-safe by permanently setting all die-specific values
  • are cost-effective thanks to the use of standard components

EcoSpray

  • resource friendly* (when the suitable release agents are used)
  • better part quality
  • longer die service life
  • continuous spraying or volumetric spraying possible
for machinetype
PSM1PSM/ESM2PSM/ESM(T)3PSM/ESM(T)4
X X X X
for spray nozzletype
SD2SD12SD3SD13SD4SD14SD16DD(V)FSD
              X X
EcoSpray
Ecospray

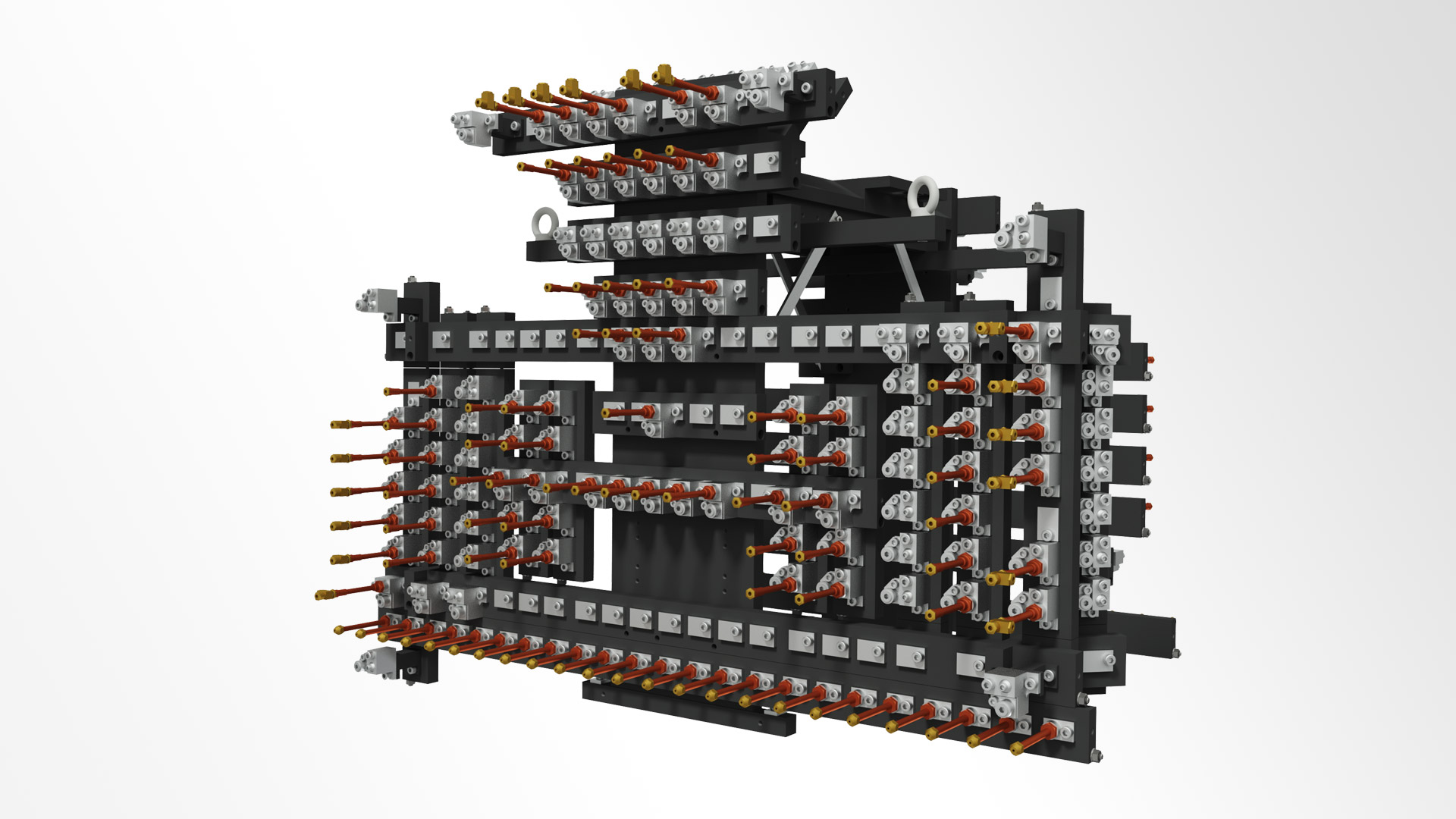

PS16

  • reliable
  • powerful
  • flexible
  • simple assembly

You can find the PDF catalog here >>

for machinetype
PSM1PSM/ESM2PSM/ESM(T)3PSM/ESM(T)4
X X X X
for spray nozzletype
SD2SD12SD3SD13SD4SD14SD16DD(V)FSD
X X X X X X X X X
PS16
PS16

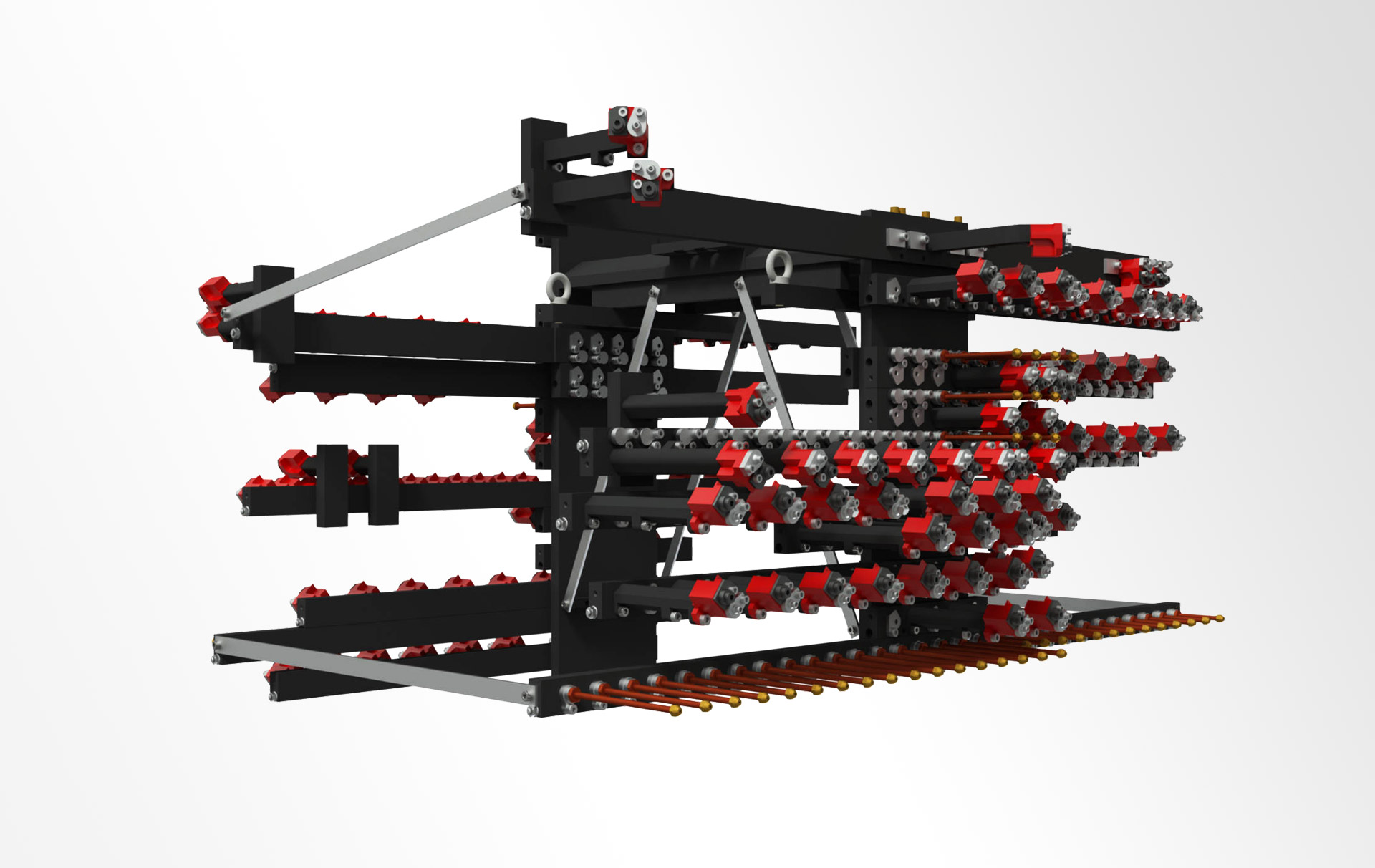

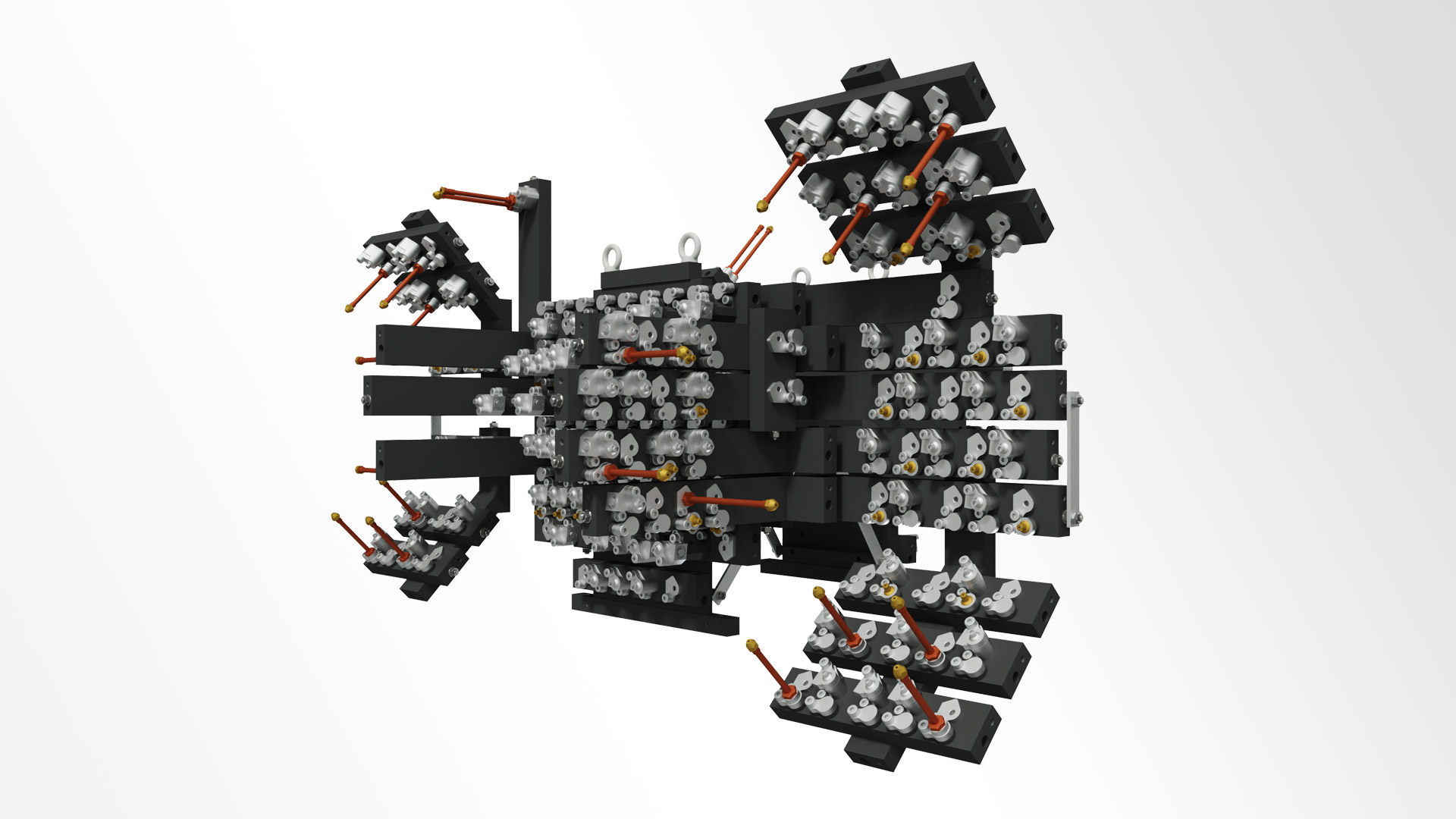

PS16c

  • weight-reduced
  • powerful
  • reliable
  • flexible

You can find the PDF catalog here >>

for machinetype
PSM1PSM/ESM2PSM/ESM(T)3PSM/ESM(T)4
X X X X
for spray nozzletype
SD2SD12SD3SD13SD4SD14SD16DD(V)FSD
        X X X X X
PS16c
PS16c

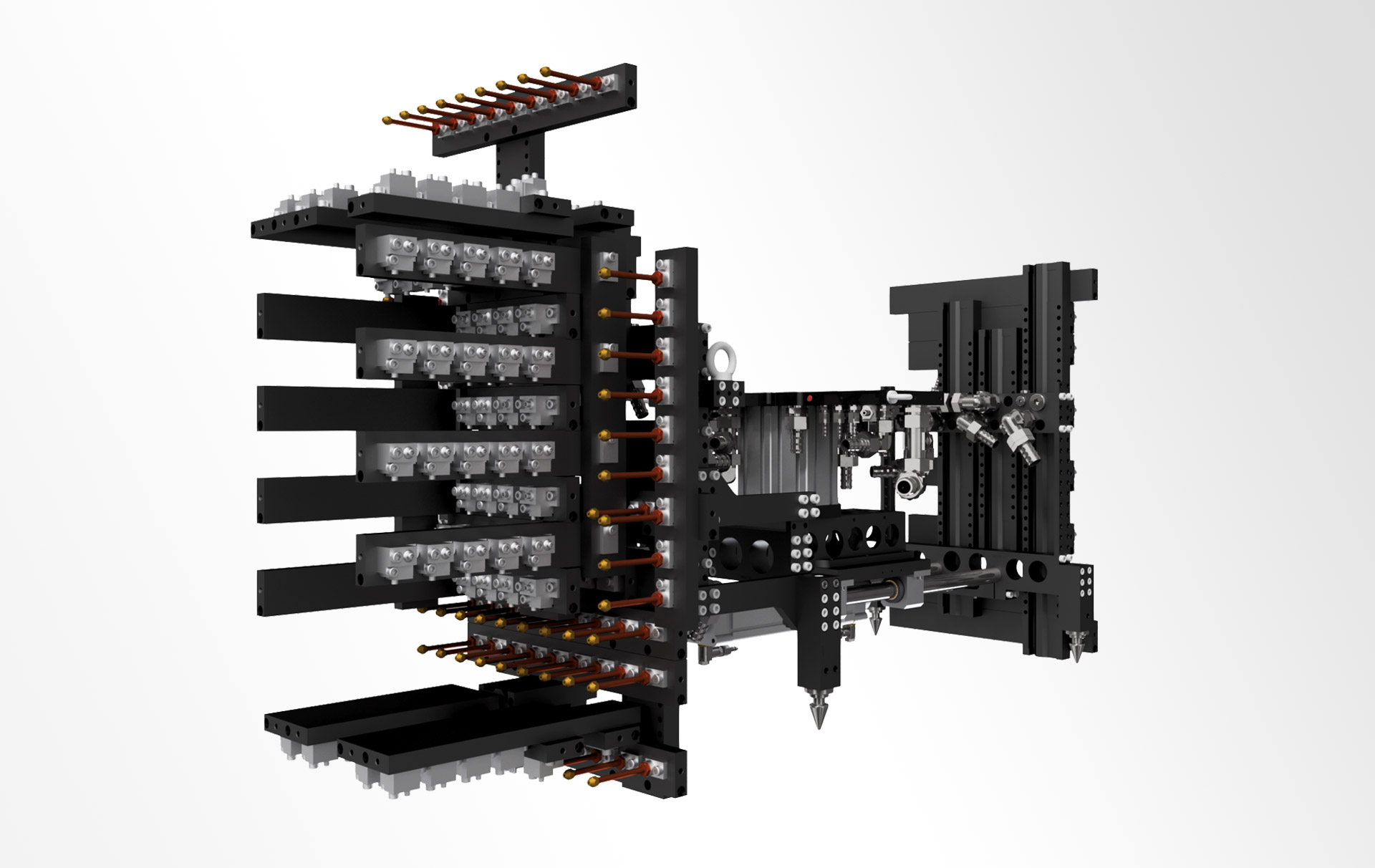

PS16XL

  • particularly suitable for large cast parts such as engine blocks or gearbox housings
  • high flexibility
  • reduced cycle time due to simultaneous, double-sided spraying
  • complex dies can be sprayed with extreme precision

You can find the PDF catalog here >>

for machinetype
PSM1PSM/ESM2PSM/ESM(T)3PSM/ESM(T)4
      X
for spray nozzletype
SD2SD12SD3SD13SD4SD14SD16DD(V)FSD
X X X X X X X X X
PS16XL
PS16XL

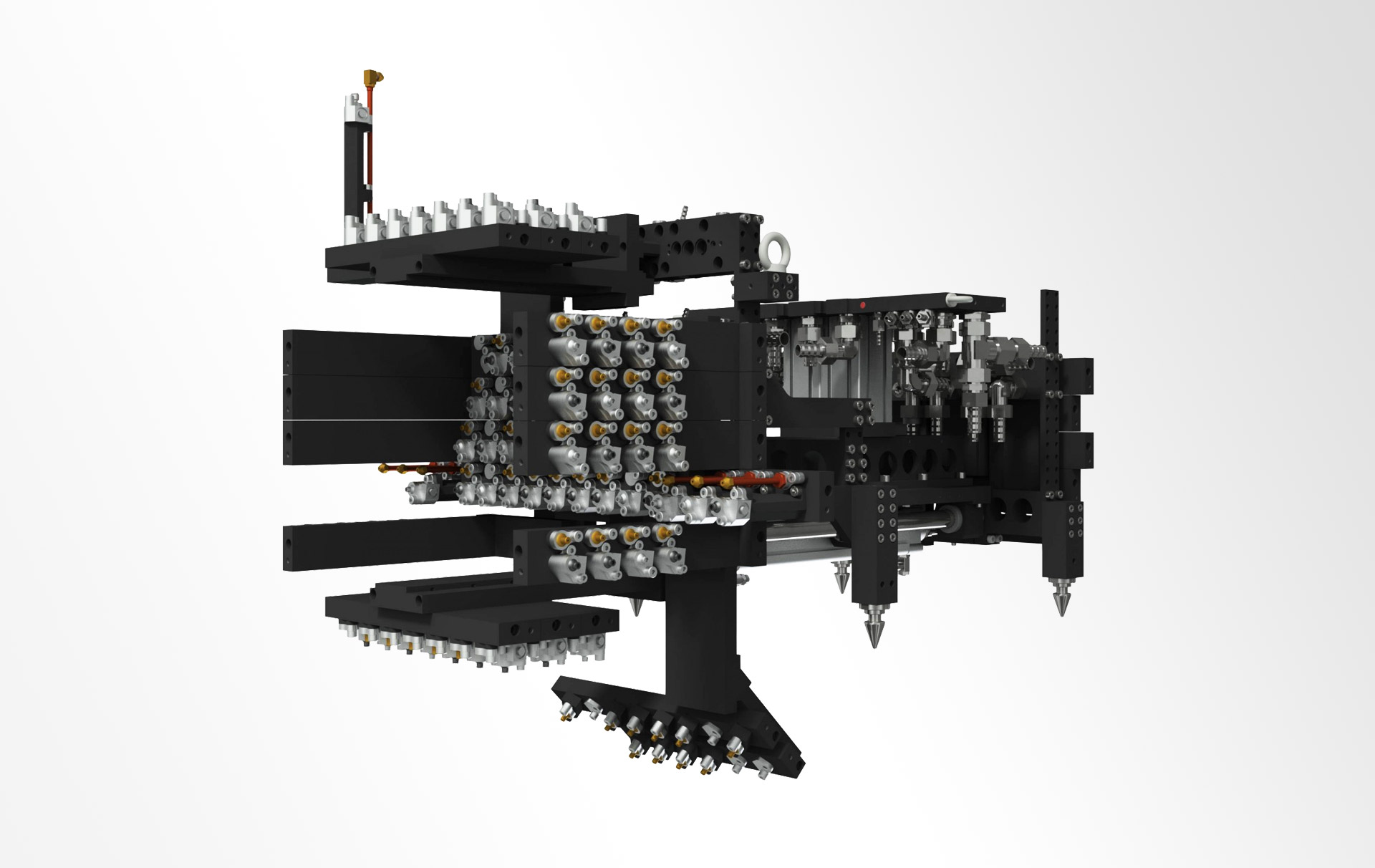

PS16cXL

  • particularly suitable for large cast parts such as engine blocks or gearbox housings
  • high flexibility
  • reduced cycle time due to simultaneous, double-sided spraying
  • complex dies can be sprayed with extreme precision
  • weight-reduced

You can find the PDF catalog here >>

for machinetype
PSM1PSM/ESM2PSM/ESM(T)3PSM/ESM(T)4
      X
for spray nozzletype
SD2SD12SD3SD13SD4SD14SD16DD(V)FSD
        X X X X X
PS16cXL
PS16cXL

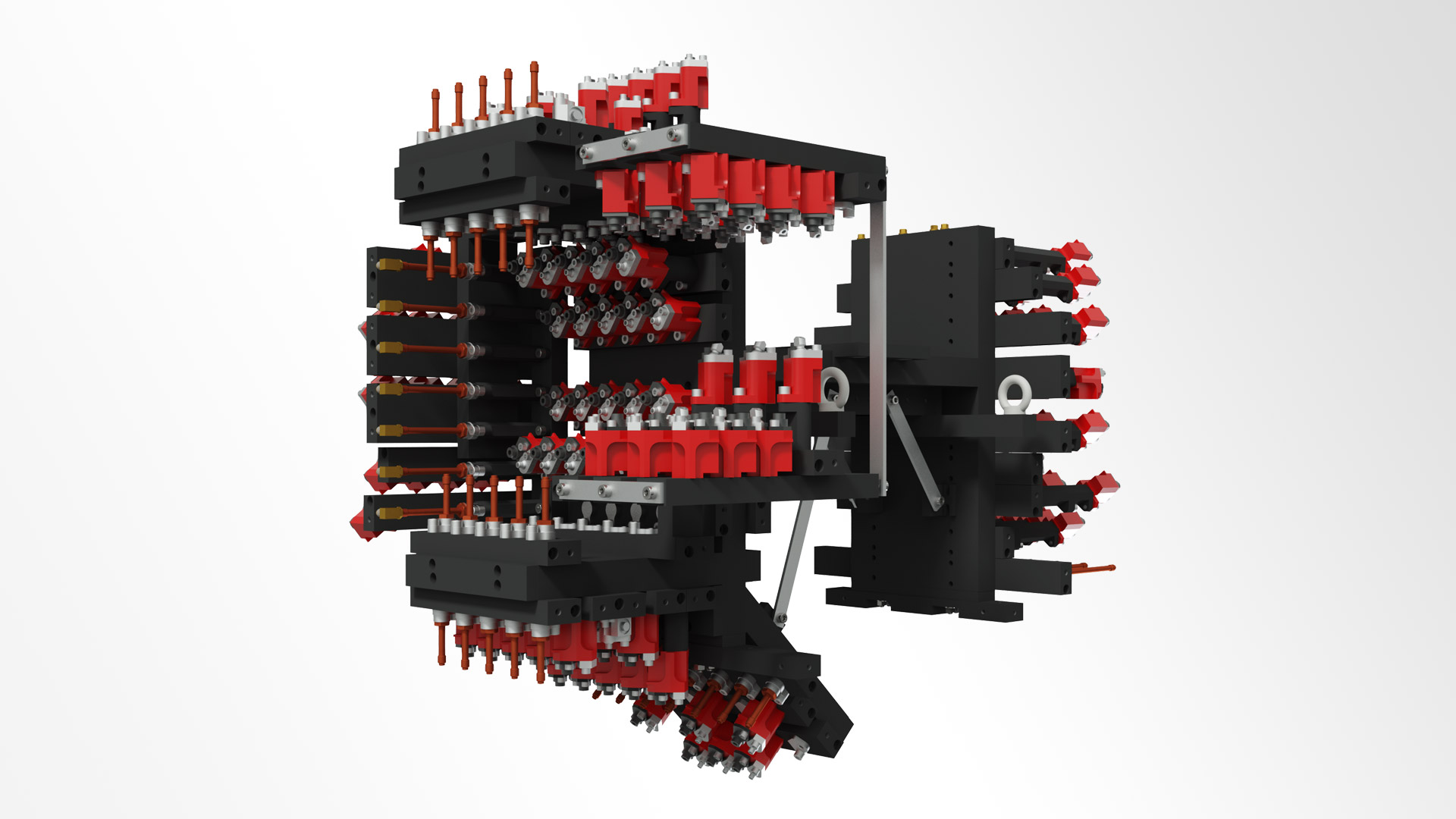

PS25

  • larger tube cross sections for more (release agent) throughput
  • for medium to large dies
  • modular design based on the LEGO-principle
  • suitable for all nozzle models

You can find the PDF catalog here >>

for machinetype
PSM1PSM/ESM2PSM/ESM(T)3PSM/ESM(T)4
      X
for spray nozzletype
SD2SD12SD3SD13SD4SD14SD16DD(V)FSD
X X X X X X X X X
PS25
PS25

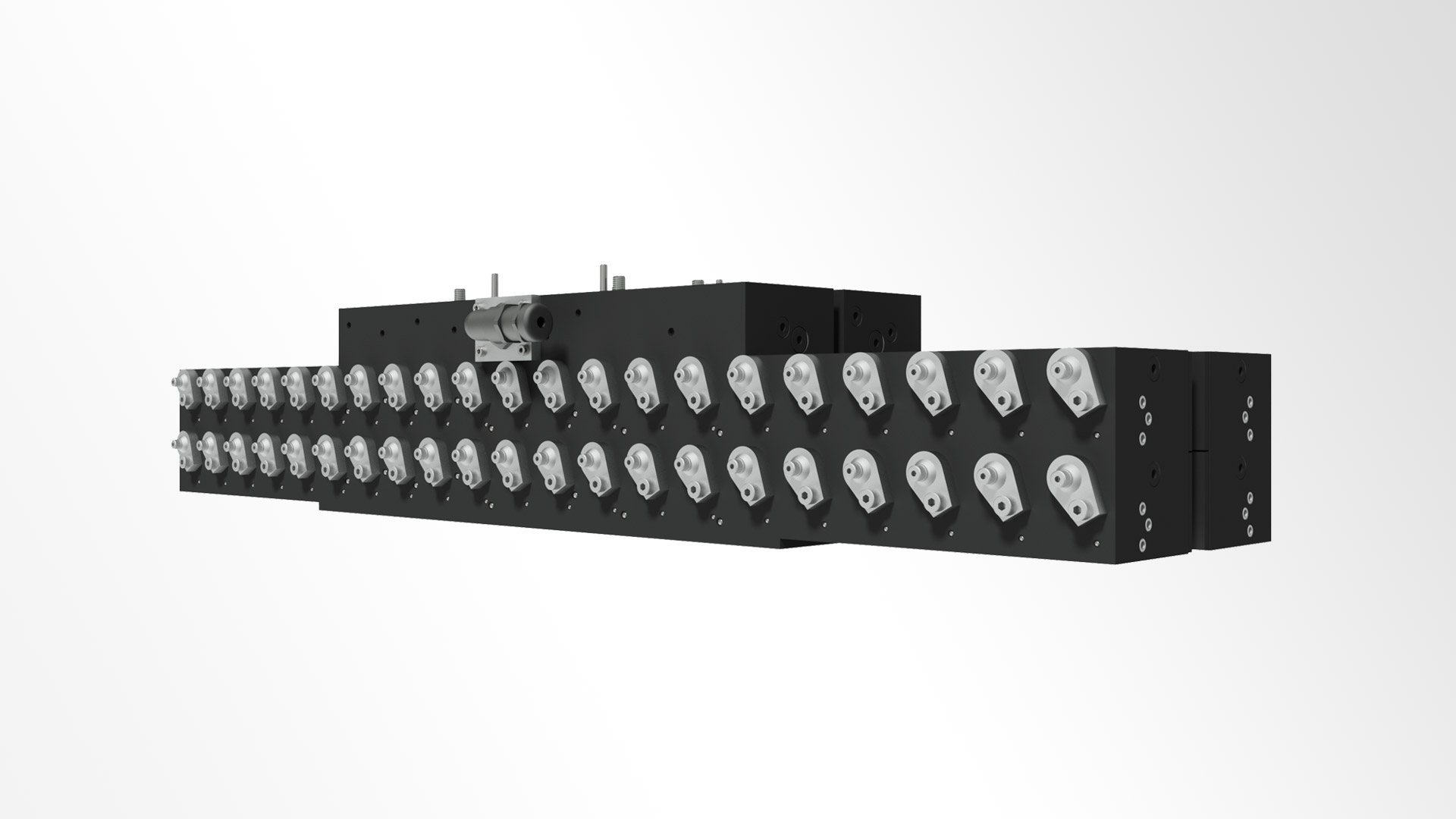

PS Matrix

  • each nozzle can be individually controlled
  • a solution for numerous applications
  • no set-up times
  • high efficiency with small series
for machinetype
PSM1PSM/ESM2PSM/ESM(T)3PSM/ESM(T)4
  X X
PS Matrix
PS Matrix



You can find an overview of all parts of the spraying tools in the PowerSpray Die Spraying Tools catalogues

to the spraying tool catalogues!
